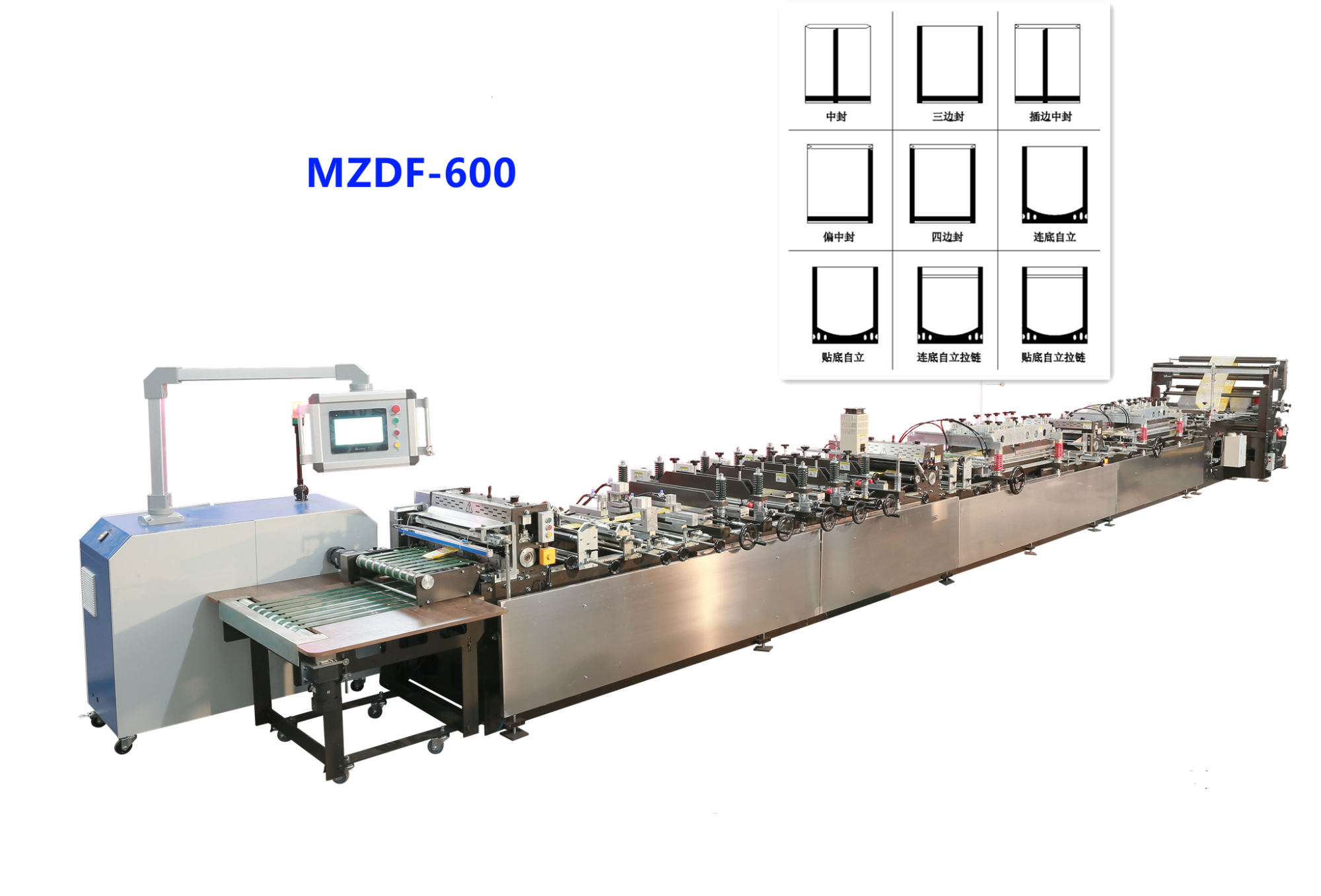

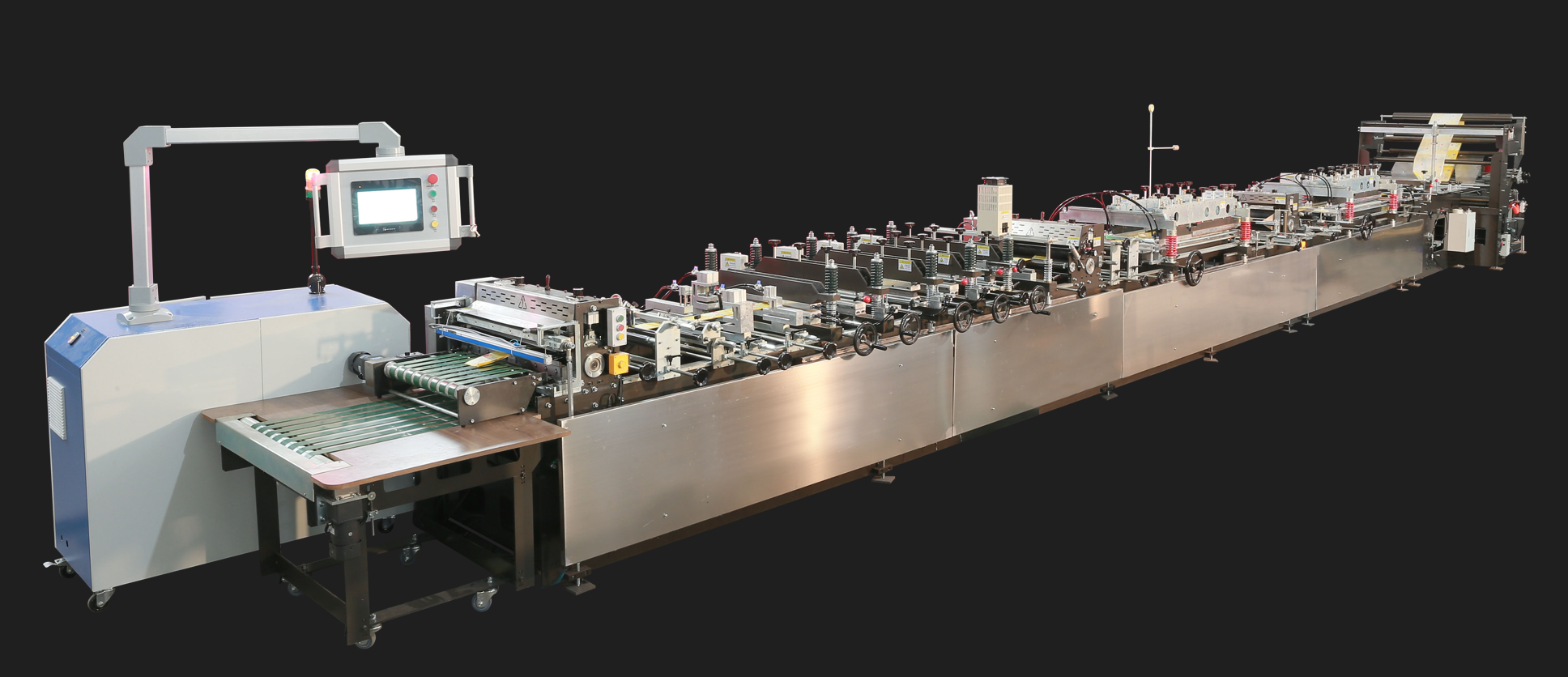

This machine adopts
Panasonic PLC and servo system, which runs smoothly, efficiently and accurately. The PLC program is written by our company's programmers and has been optimized many times, the operation is more convenient, the operation is more stable, one machine is multi-purpose, and the application area is wider, it can produce

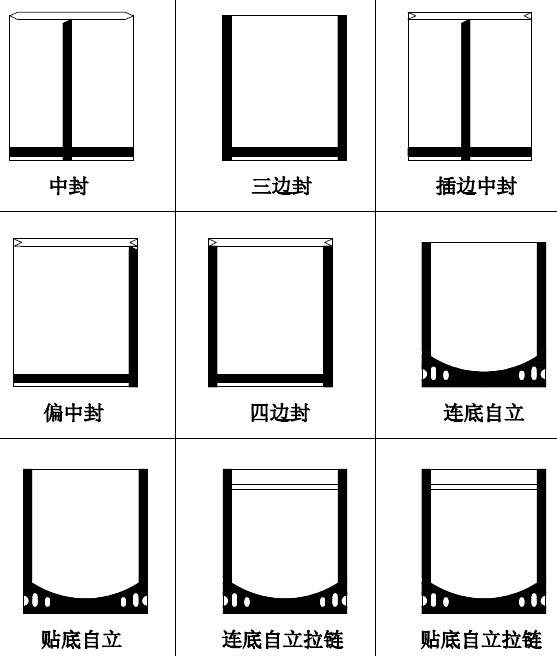

9 types of composite film packaging bags.
Roll material: BOPP, SOPP, PET, PVC, nylon, medical and other polymer composite films, paper-plastic composite films.
Technical Parameters:
Max speed: 150 pcs
Max. roll film width: 1220 mm
Max. roll film diameter: 800 mm
Max. bag width: 600 mm
Max.pull length/time: 400 mm, ×2, ×3, ×4, ×5, ×6
Positioning Accuracy: ≤±0.3mm
Power: 56 kw
Dimensions: 15000X2000X1900 mm
