Grisha-a production company specializing in R&D for bag machine

Heating Technology

UPT pulsed welding technology

When welding multilayer films (6 or 8 layers) or handling films with a PE surface layer, the drawbacks of traditional electric heating tube methods become glaringly apparent. Our UPT pulsed welding technology represents a revolutionary advancement.

A. Instant Heating: 150°C in 0.85 seconds, Instant Cooling: 60°C in 1 second. The speed is increased by 3,000 times. Instant cooling is particularly effective for welding composite films with a PE surface layer.

B. Temperature difference of less than ±1°C, with a 10-fold improvement in temperature uniformity. Uniform temperatures on both the upper and lower welding surfaces ensure even film melting, which is a prerequisite for high-quality welding.

C. No preheating required, no continuous power supply needed for heating, resulting in a 60% energy saving.

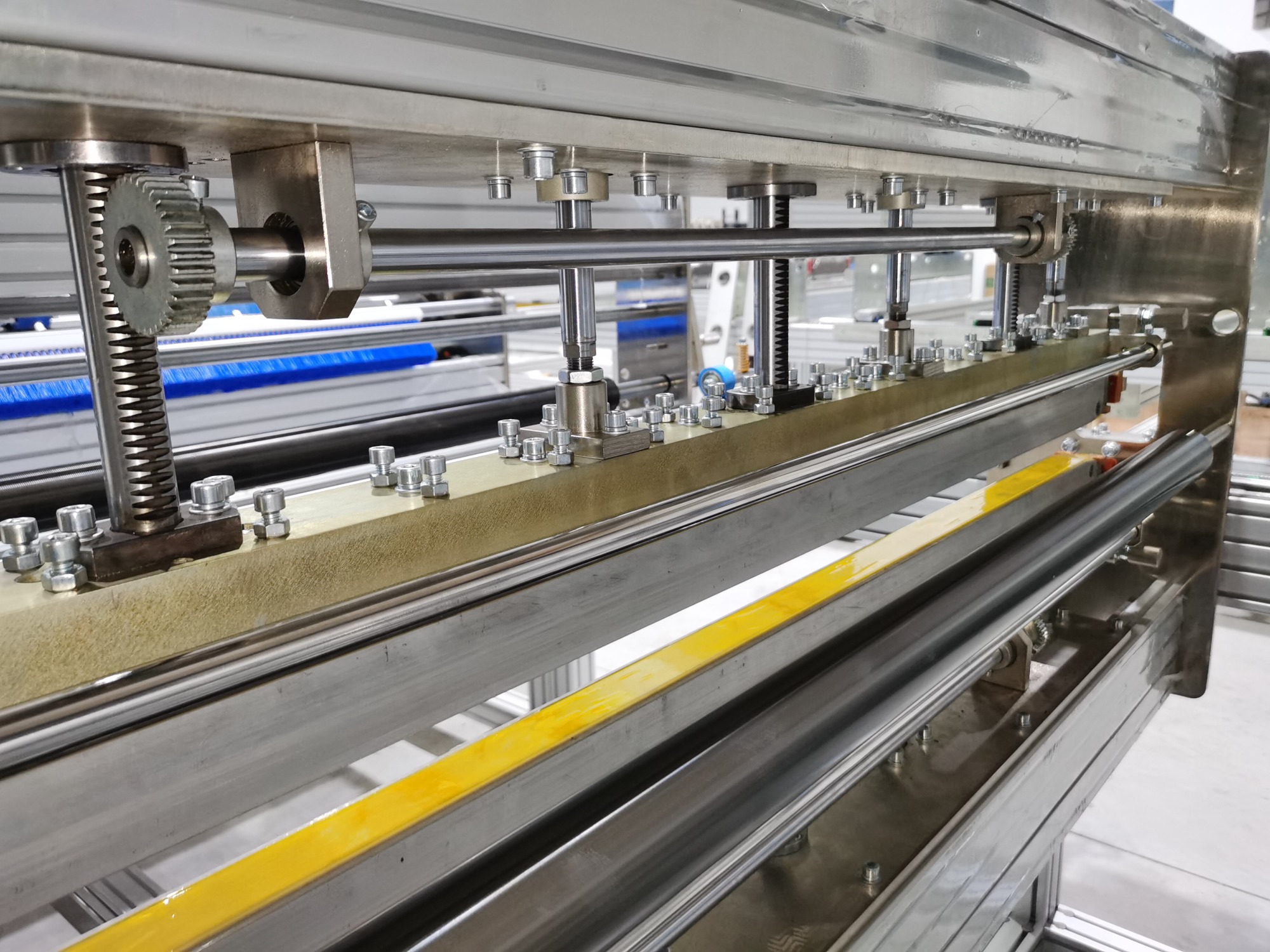

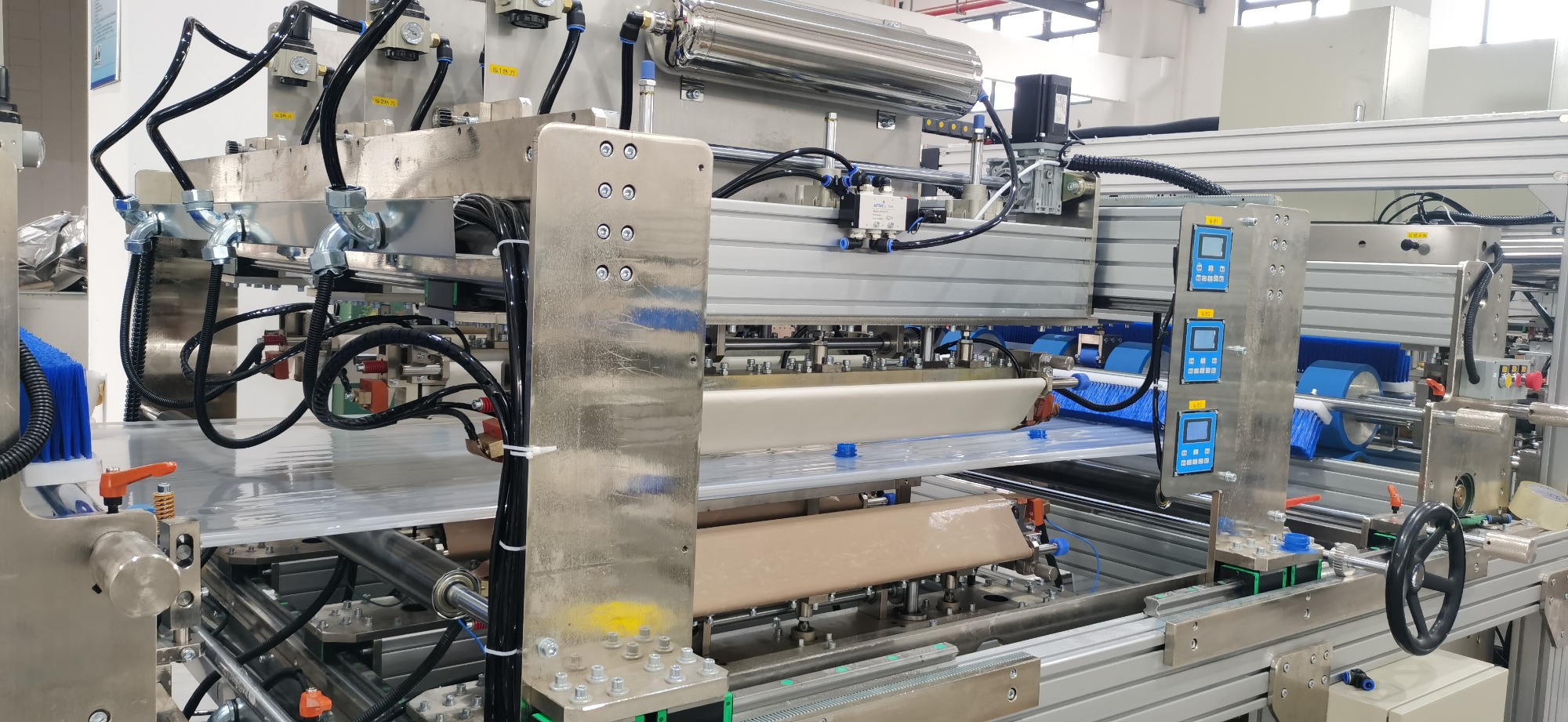

Our welding mechanism

Why is our welding structure like this?

A. The upper and lower devices are synchronously squeezed in the middle and synchronously disengaged in the opposite direction.
B. The film is always in the middle of the upper and lower welding surfaces. The film is evenly stressed and stable.
C. Since we use electric heating wire (5mm wide and 0.3mm thick) to heat and contact the film, there is no heat conduction structure and no heat loss. A heat-resistant silicone layer is attached to the back of the heating wire, which greatly improves the fit of the upper and lower welding surfaces and effectively prevents damage to the material structure.
D. The upper and lower welding mechanisms are equipped with synchronous gears to ensure the synchronization of the upper and lower movements and the uniform stress on the welding surface.

Produce by recipe

What is a production recipe? That is, a set of production data formed according to the material, size and process requirements of each product, including: pace, pull length, temperature, pull ratios, the position of each mechanism, etc., and store these data (up to 10,000 sets of data). It not only improves the production efficiency and product quality, but also omits the debugging time and waste of materials when the product is replaced every time.

Bag making machine

Advanced intelligent equipment is the first guarantee for the absolute advantage of the product.

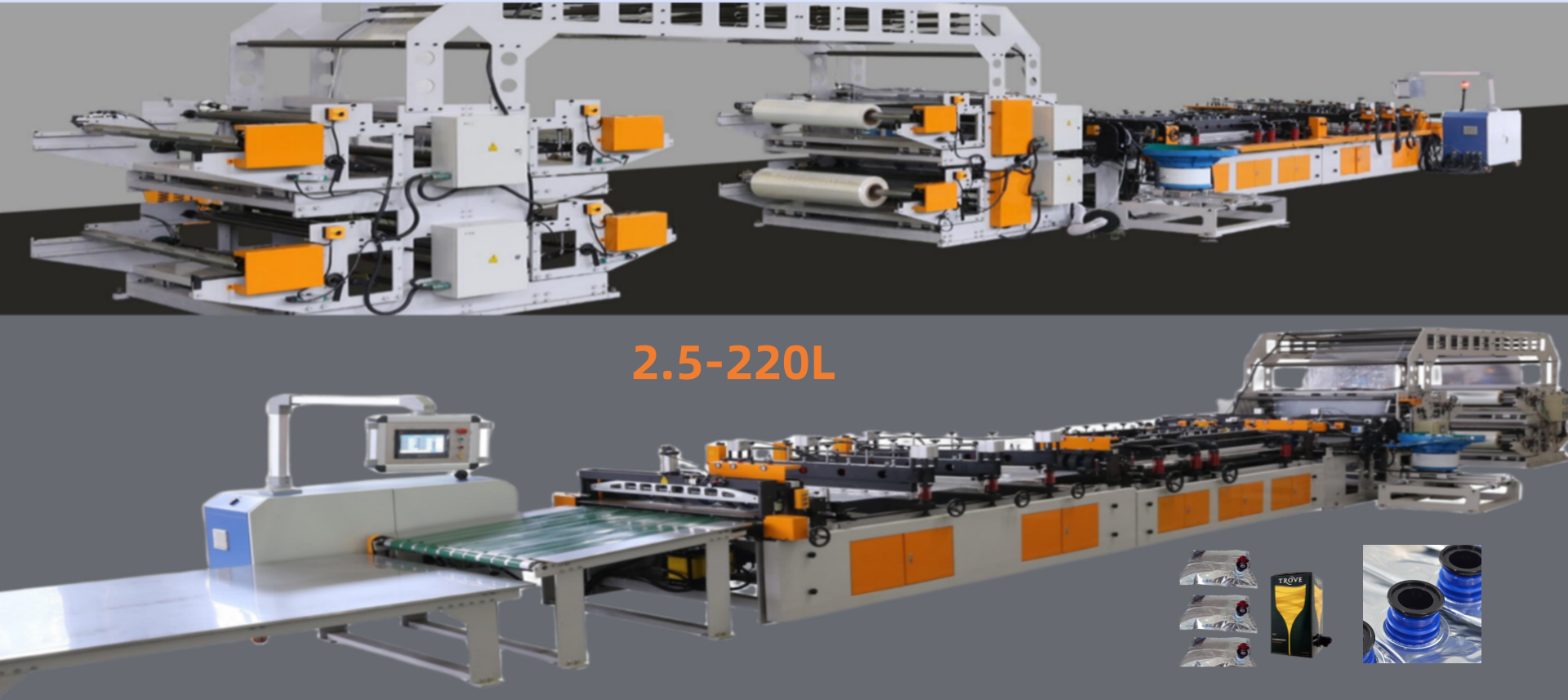

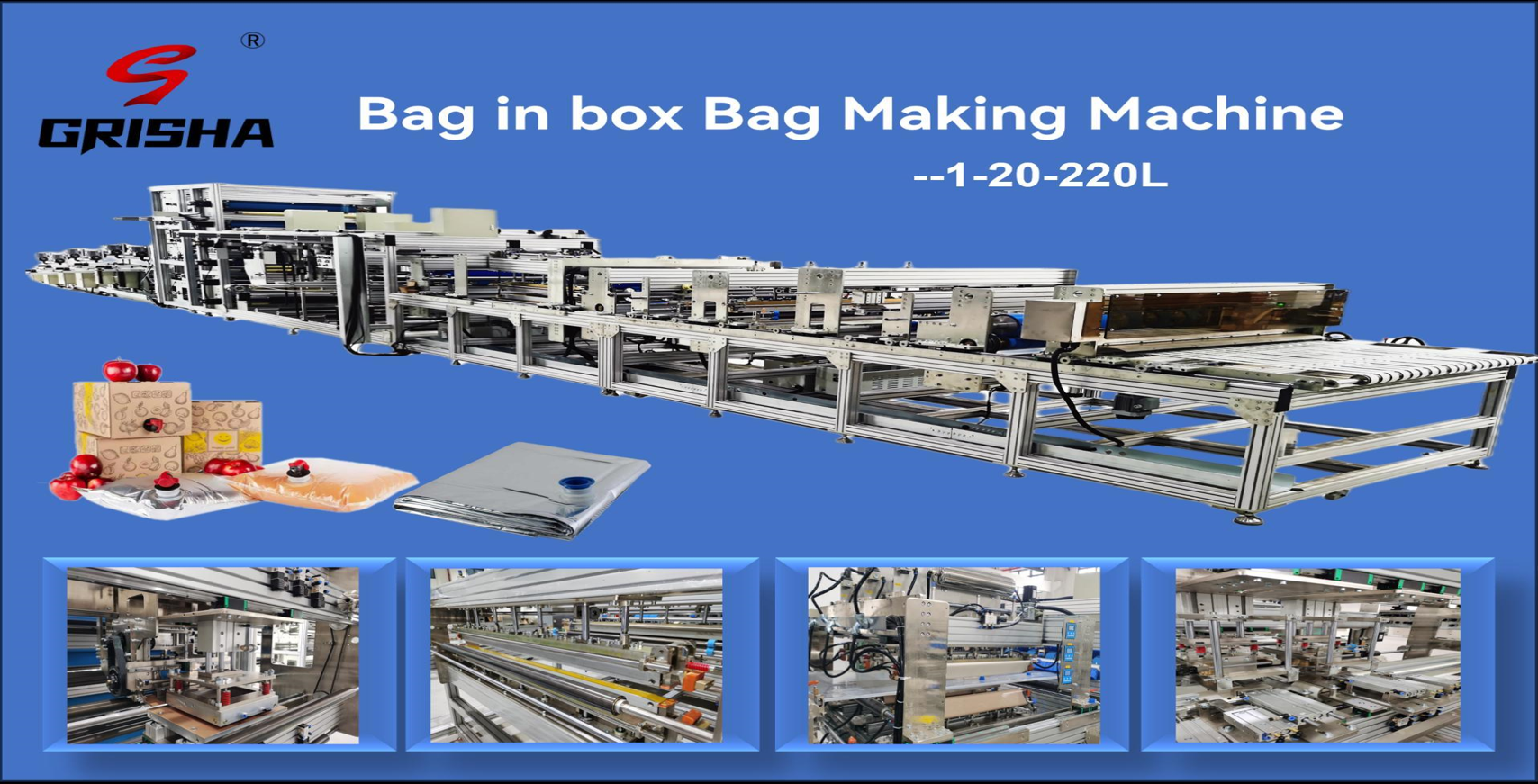

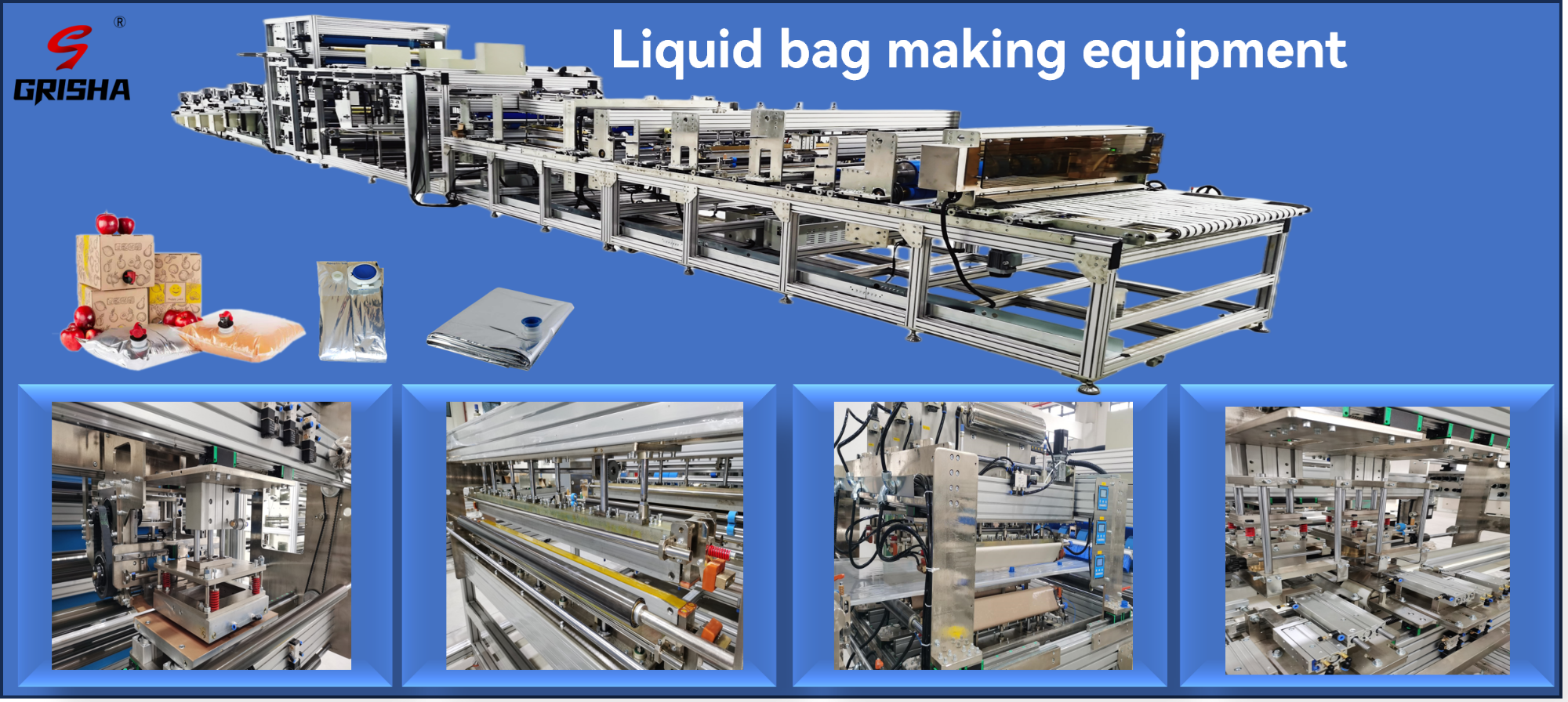

Bag in box Bag/BIB bag Making Machine/Liquid bag Making Machines

Bag making range: 2.5-220L Max speed: 25L 80pcs/min, 220L 34pcs/min. According to the model bag width can choose 1300mm, 1600mm, 2200mm, 2500mm. Heating 150°C/0.85S, cooling 60°C/1S, temperature difference ±1°C.

Liner Big Bag Making Machine

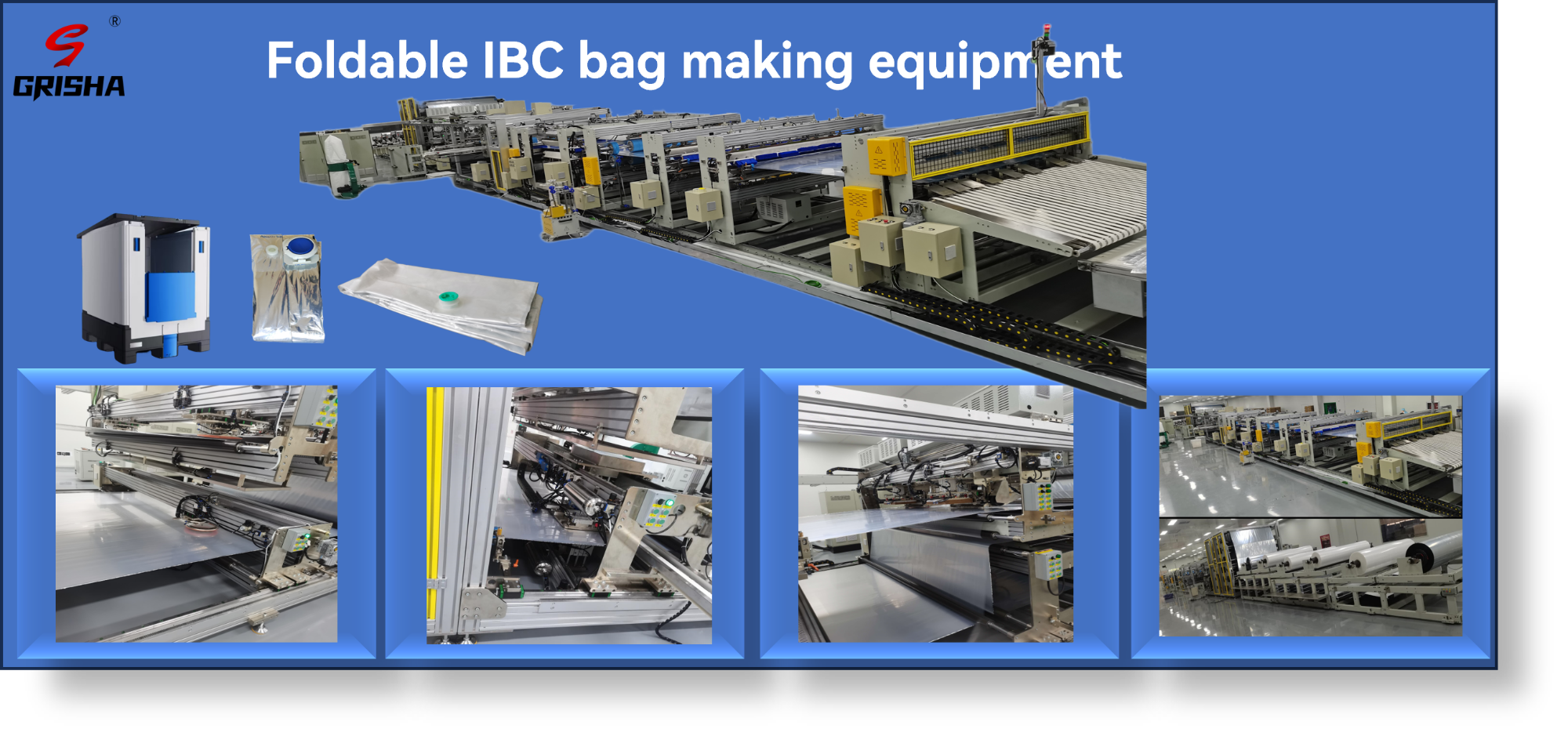

Foldable IBC liner Bag Making Machine -2500

Foldable IBC liner bag/Bag in box system/From 500 to 1400 Liters

580-850-1150 Single Station Remix UV Digital Embelishmentine ( Customizable in various widths no more than 5.4 meters )

370 UV Digital Embellishment Machine

View all Products

Bag and Liner

First-class equipment and first-class management can create first-class products.

Aseptic bag drum bag bulky bags heavy weight carrier strong resistance 200 KG packaging for juice concentrate

GRISHA ASEPTIC BAG

Liners for Bulk Liquid Containers/Bag in box system/From 500 to 1400 Liters

Foldable IBC liner bag/Bag in box system/From 500 to 1400 Liters/Liners for Bulk Liquid Containers

Aseptic bag in drum 220L for aseptic liquid storage/ chemicals storage/ heavy weight packaging for food industry

GRISHA ASEPTIC BAG

FIBC Liner

Our liner lining is more resistant to oxidation, moisture, corrosion and pollution, endowing the container bag with a wide application range and better protection guarantee.

Foldable IBC Three-dimensional liner bag/Bag in box system/From 500 to 1400 Liters

Dunnage Air Bag

Airbags are light and easy to store, and are widely used in transportation protection, sports cushioning, outdoor and emergency. In logistics, it can prevent goods from being damaged.
