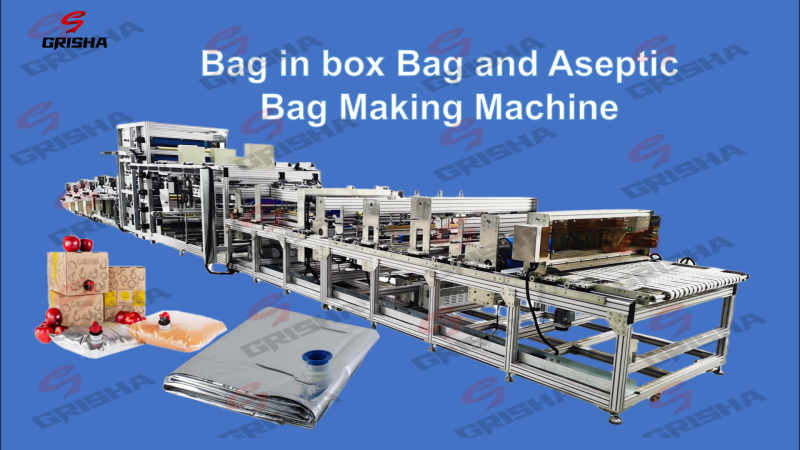

Bag making range: 2.5-220L
Maximum speed: 25L 80 pieces/min, 220L 34 pieces/min.
Heating 150°C/0.85S, cooling 60°C/1S, temperature difference ±1°C.
UPT Heat Sealing System
The emergence of UPT technology is revolutionary for traditional heat sealing systems
|
Comparison element |
UPT |
Traditional heat sealing system |
Comparison
|
|
|
UPT
|
Traditional heat sealing system
|
|||
|
Welding structure
|
Heating tape
+ silicone pad
|
Electric heating tube + metal ironing knife
|
Instant heating and cooling, uniform pressure, high fit, direct heating without conduction loss, and no damage to the film structure.
|
Slow heating and cooling, uneven pressure, poor fit, large conduction loss, and damage to the film structure.
|
|
Welding times
|
1 time
|
2-3 times.
|
No damage to the film structure, increase speed and save time.
|
Repeated sealing and pressing will damage the film structure many times, and the heat sealing time takes a large proportion and the speed is very slow.
|
|
Warm up time
|
150℃/0.85S
|
Preheat for 28-30 minutes, and uninterrupted heating.
|
Save electricity by 67%. Warm-up time shortened by 99%.
|
Power consumption is large, increasing product cost. The warm-up wait time is long.
|
|
Cooling
|
50-70℃/1S (heat sealing and cooling as a whole)
|
Continuously energized and heated, unable to cool down.
|
It is more conducive to the heat sealing of PE bags and co-extruded film bags.
|
Unable to produce PE bags and co-extruded film bags.
|
|
Temperature difference between the middle and both ends in the welding knife
|
＜±2 ℃
|
＞25 ℃
|
The heat sealing is uniform and more reliable, the edges are neat and the quality is more guaranteed. The passing rate is 100%.
|
The temperature difference is large, the heating is uneven, and the heat sealing firmness is poor.
|
|
Material range
|
Composite film and PE, co-extruded film
|
Composite film
|
All films can be welded.
|
Adapt to limited materials
|
Important parameters
Bag making range: 1-220L
Package width: 1300mm, 1600mm, 2200mm (optional).
Maximum long pull/times: 800mm, 1000mm, 1300mm, 1600mm (optional).
Max speed: 25L 80pcs/min, 220L 34pcs/min.
Heating: 150℃/0.85s Cooling: 60℃/1s
The free combination of modular structure is suitable for different production needs.

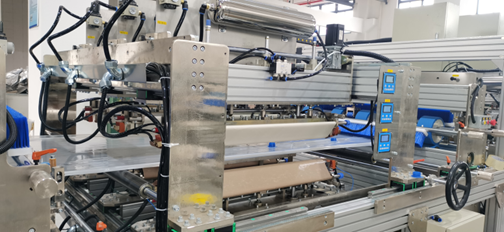

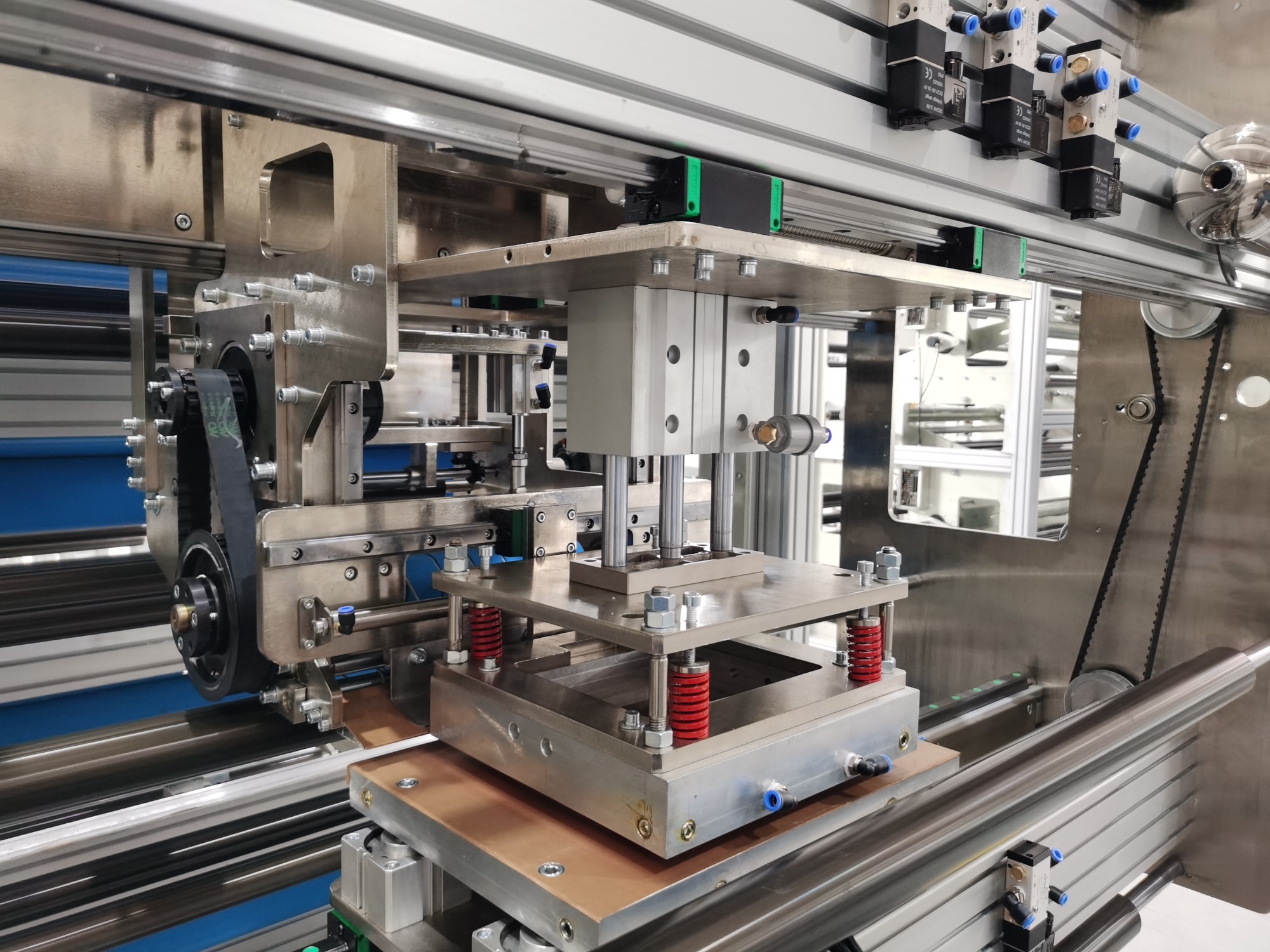

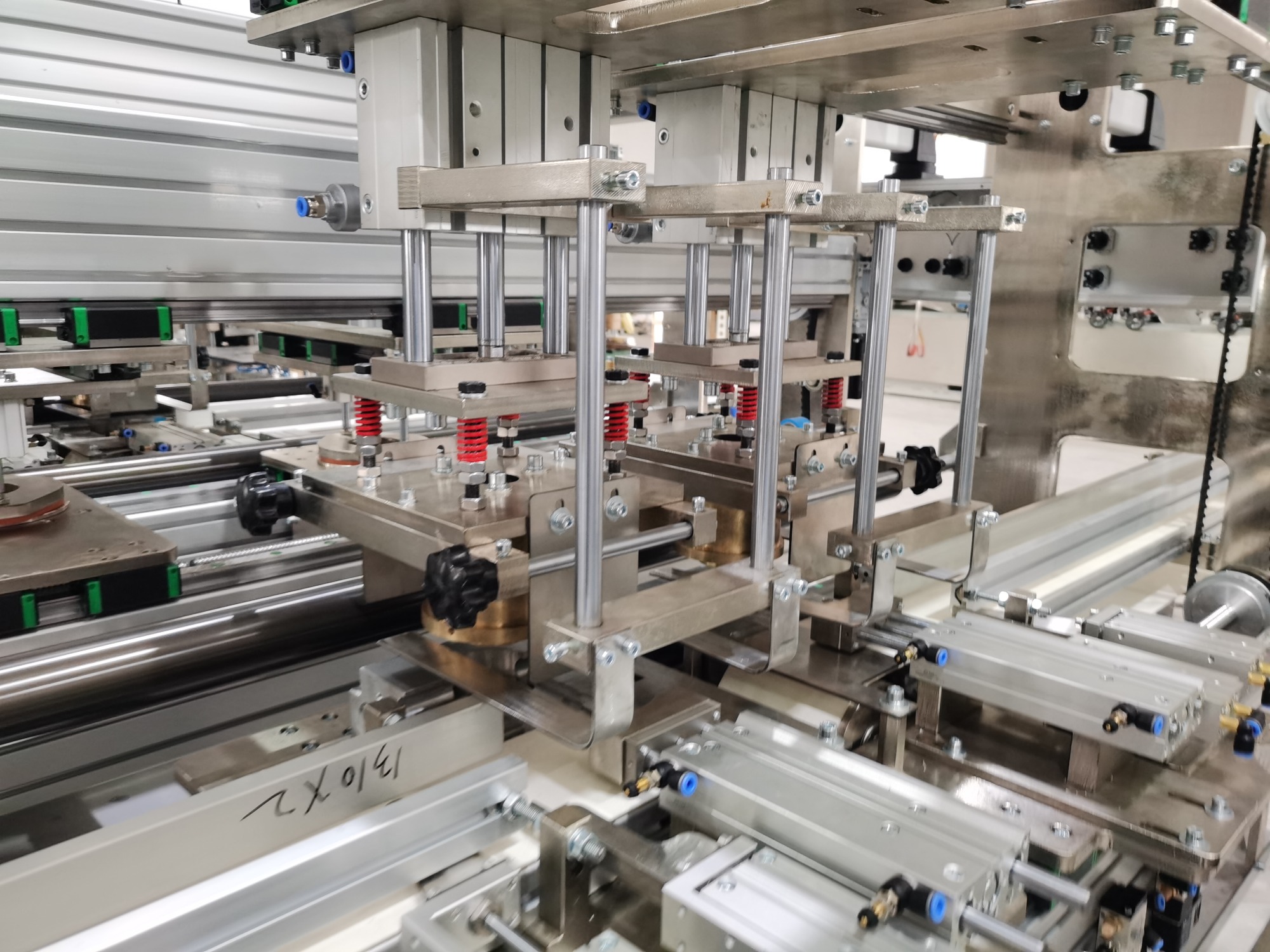

Patches, valves and guide strip modules: The patch mechanism is equipped with a servo system (this mechanism is optional). Each group of openings and valve heat sealing mechanisms are configured on the left and right sides (1 or 2 groups are optional). The fluid guide tape is also configured for left and right (you can choose whether you need this mechanism). The position of the valve and the fluid guide tape can be electrically adjusted vertically and horizontally, respectively.
|
Model |
MHZD-1300ZH |
MHZD-1600ZH |
MHZD-2200ZH |
|
|
Material |
All kinds of composite films, PE, co-extruded films. |
|||
|
Maximum width of the film in the roll |
1350mm |
1650mm |
2250mm |
|
|

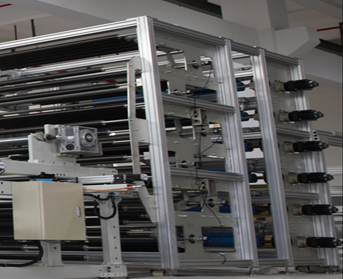

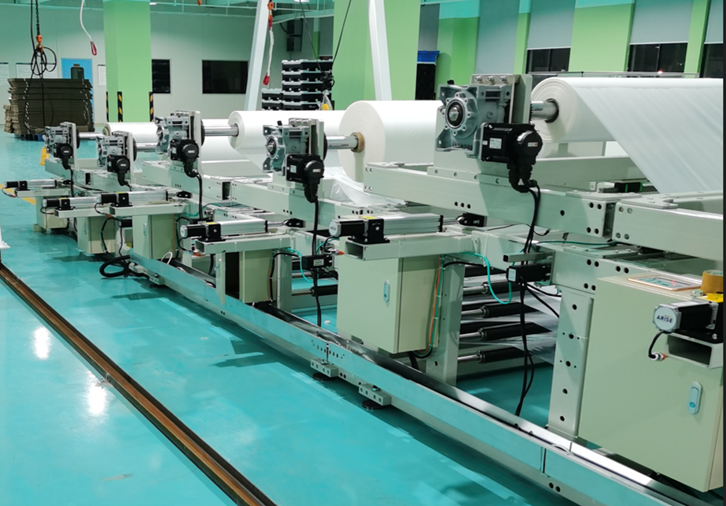

Unwinding Quantity |
6 |
6 |
6 |
|
|
The diameter of the unwinding |
1000mm |
1000mm |
1200mm |
|
|
Traction length/one time |
800mm, 1000mm, 1300mm, 1600mm ( Option ) |
|||
|
Bag maximum width |
1300mm |
1600mm |
2200mm |
|
|
Production speed |
2.5-25L |
(19-22pcs)×1 or 2/min |
(19-22pcs)×2 or 4/min |
(19-22pcs)×1 or 2/min |
|
220L |
9 pcs/min |
17-23 pcs/min |
17pcs×2/min |
|
|

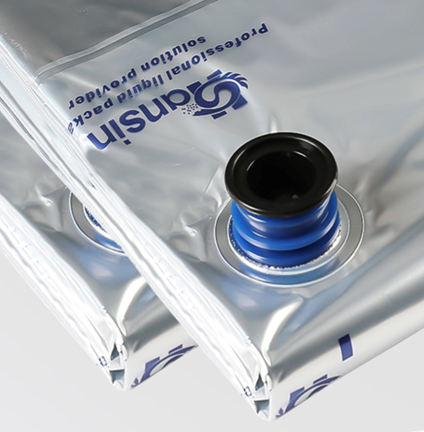

Valve diameter |
1 or 2 inches |
|||
|
Equipment length |
19-25m |
19-25m |
19-25m |
|
