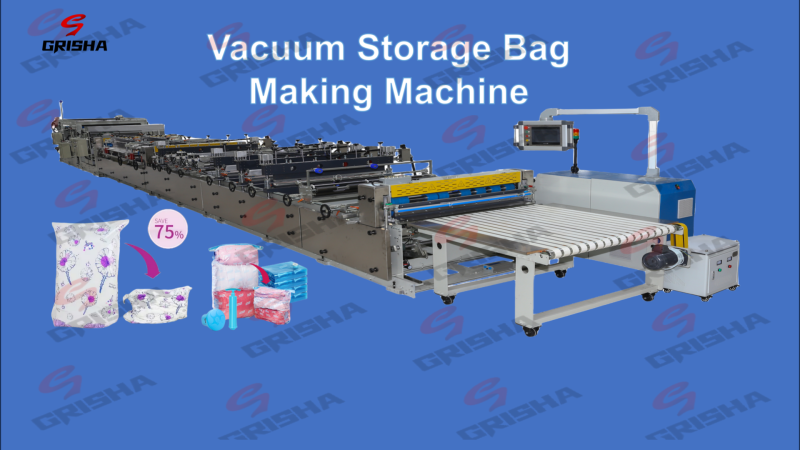

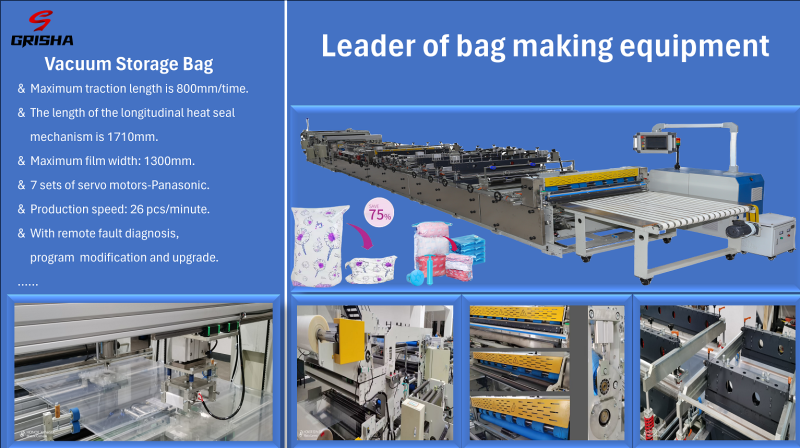

Speed: 26pcs/min
8 servos
Thrust 800mm/time
Longitudinal welding length: 1710 mm
|

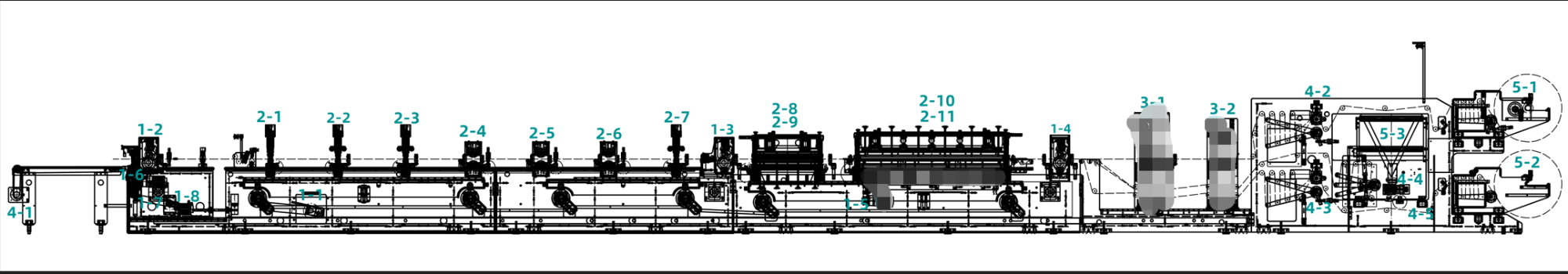

1-1 |
Main motor - Servo |
2-5. 2-6 |
Welding end zipper |
|
1-2, 1-3, 1-4 |
for pulling - Servo |
2-7 |
Longitudinal welding |
|
1-5 |
for down welding zipper - Servo |
2-8, 2-9 |
Longitudinal cooling |
|
1-6 |
Cutting-servo |
2-10, 2-11 |
Longitudinal welds |
|
1-7 |
Cutting Width - Servo |
3-1 |
Welding valve |
|
1-8 |
Advance-Servo |
3-2 |
Opening hole |
|
2-1 |
Lateral cooling |
4-1 |
Сonveyor belt(frequency motor) |
|
2-2, 2-3 |
Lateral welds |
4-2, 4-3, 4-4, |
Unwind traction (frequency motor) |
|
2-4 |
Cooling end zipper |
4-5 |
Pull zipper (frequency motor) |
|
2-5. 2-6 |
welding end zipper |
5-1, 5-2, 5-3 |
Unwinding mechanism(frequency motor) |

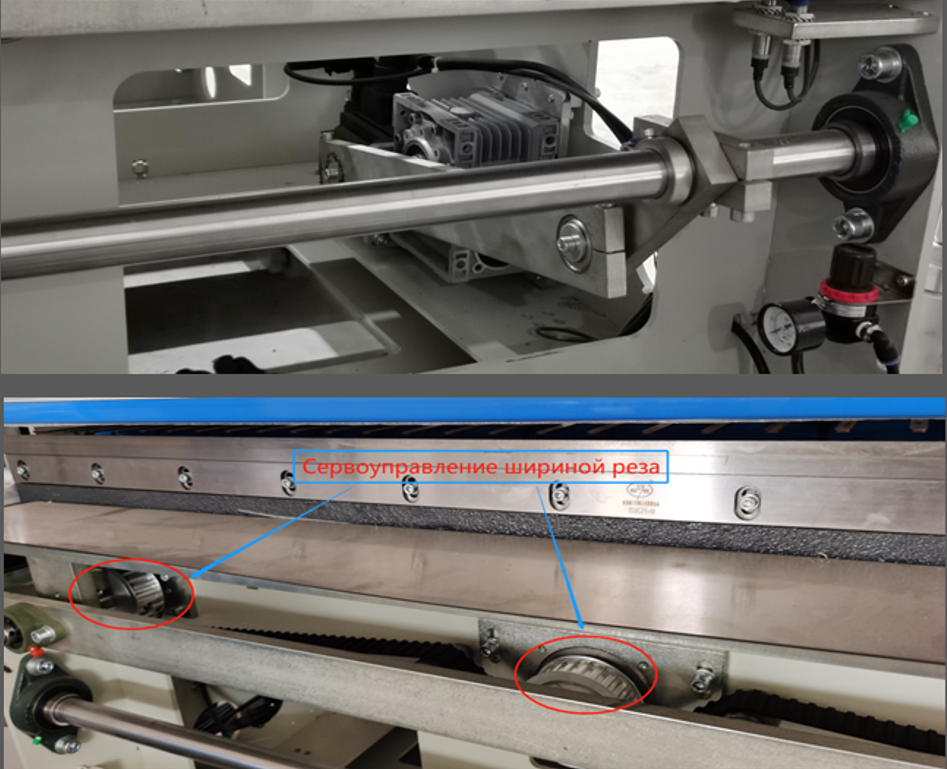

Both the cutter and the cutting width are servo system

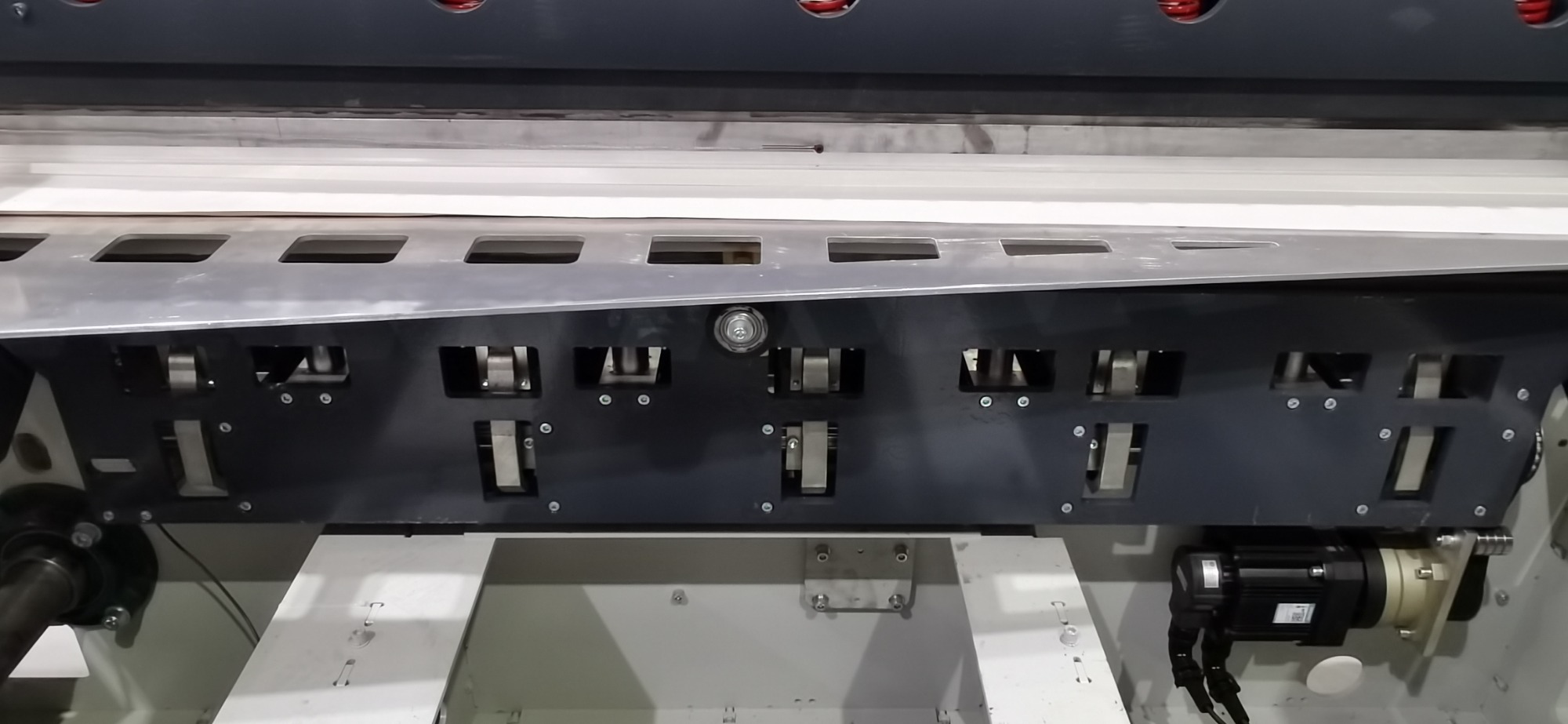

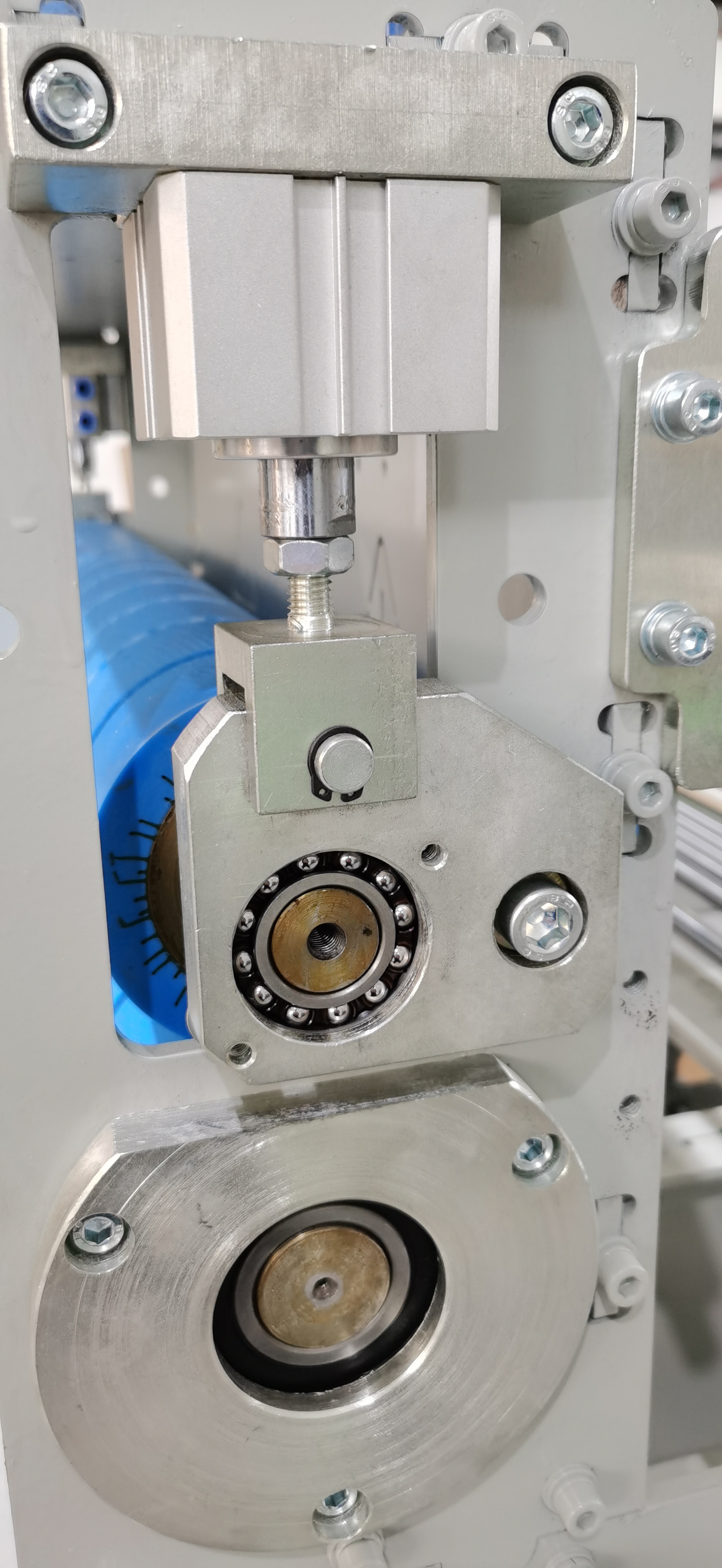

Welded zipper device

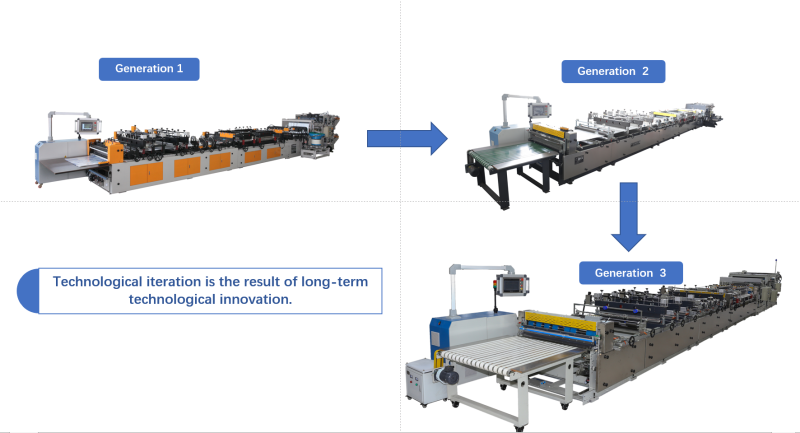

Advantages over traditional technologies:
The length of the longitudinal sealing device is 1710mm, and the effective length of the heat sealer is over 1600mm. Compared with the traditional length of 1050mm, it can achieve 100% efficient heat sealing twice with 800mm pull length (PA+PE and PET+PE), the quality is guaranteed and the speed is improved. The bottom heat sealing mechanism is driven by a servo motor, which is upgraded from stationary to moving up and down. The heat sealing time can be controlled according to the characteristics of the film material.
The specific manifestation is as follows:
ØThe lower heat sealing mechanism is in the downward movement state when the film is pulled out. Compared with the fixed type, it will not continuously overheat the film, damage the film, and wrinkle the surface of the film, thereby damaging the welding quality between the zipper and the film.
ØThe use of servo technology, in addition to the mechanism can move up and down, can also control the duration under different working conditions according to the characteristics of the film material, such as the downward movement height, heat sealing duration, etc., to further ensure quality of welding between film and lightning.

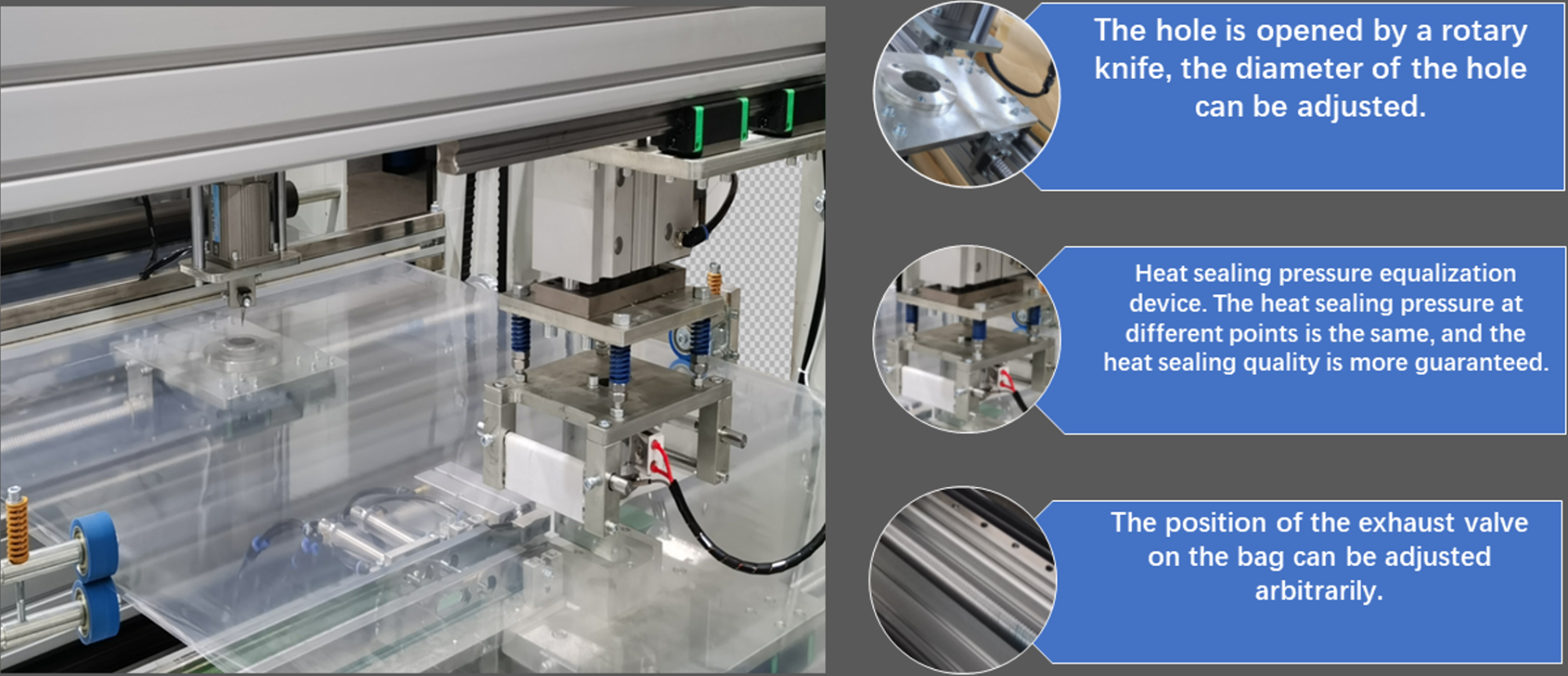

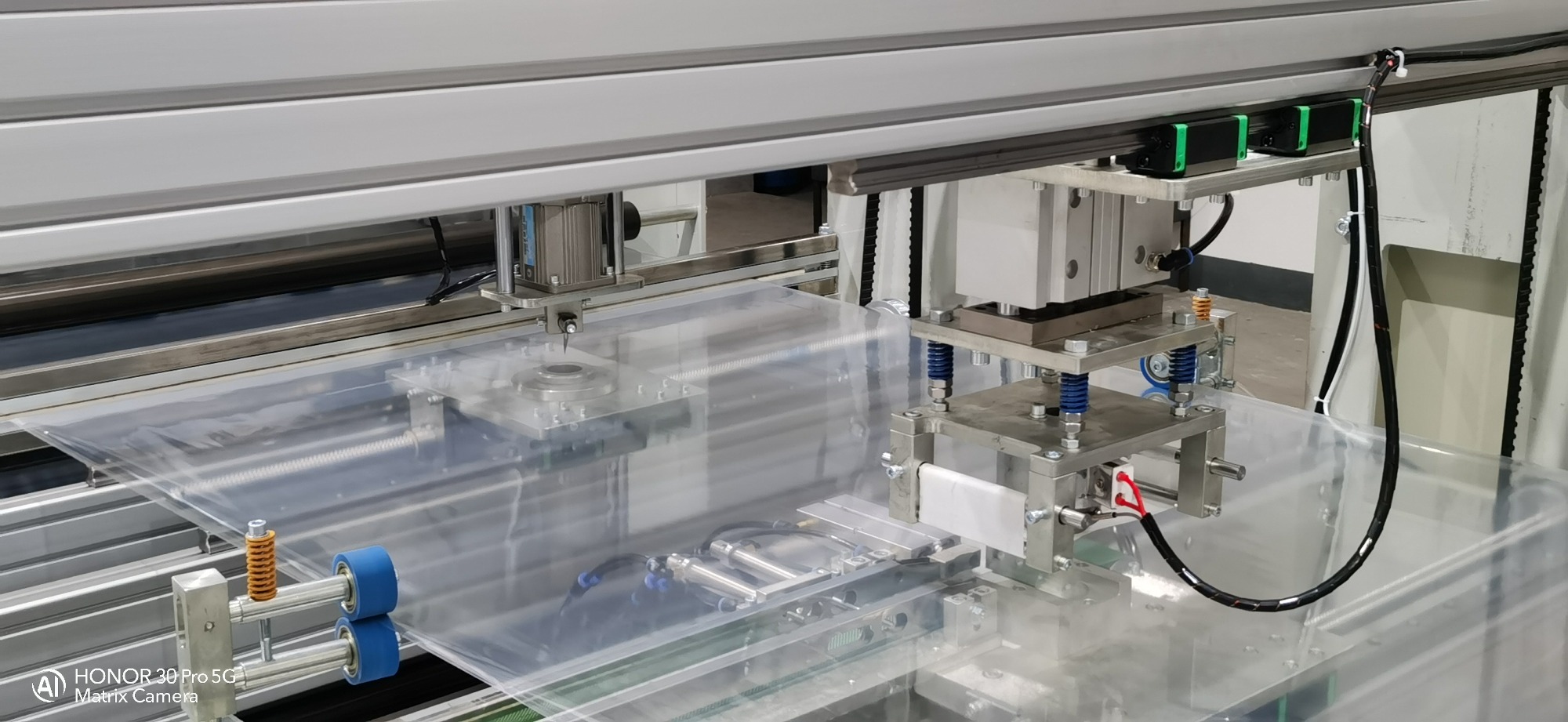

Valve system
|

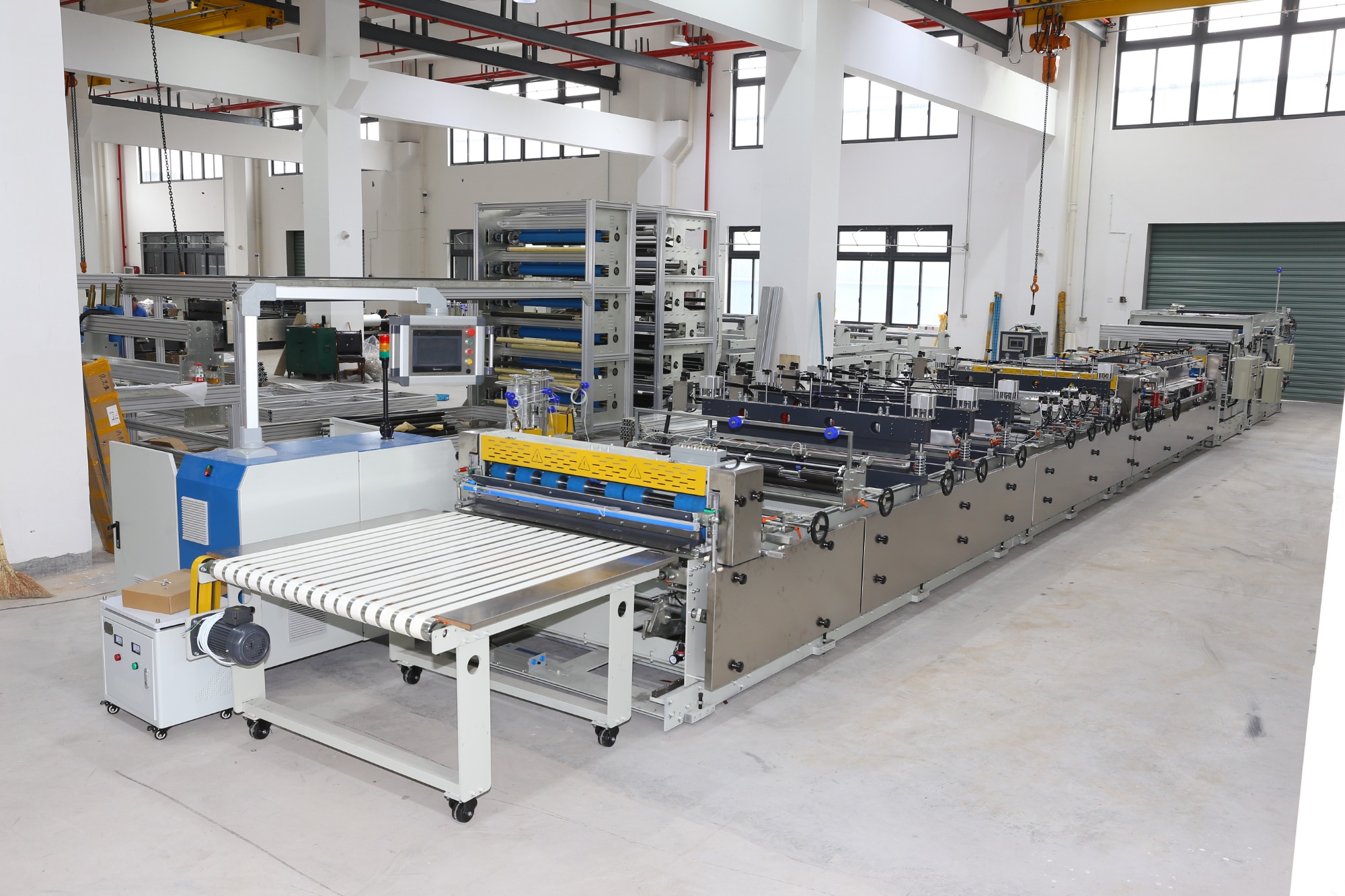

Bag type |
1. bag with three side seams 2. doypack bag 3. doypack with valve |
|
Film material |
PE, PET, BOPP, CPP, COPP composite films |
|

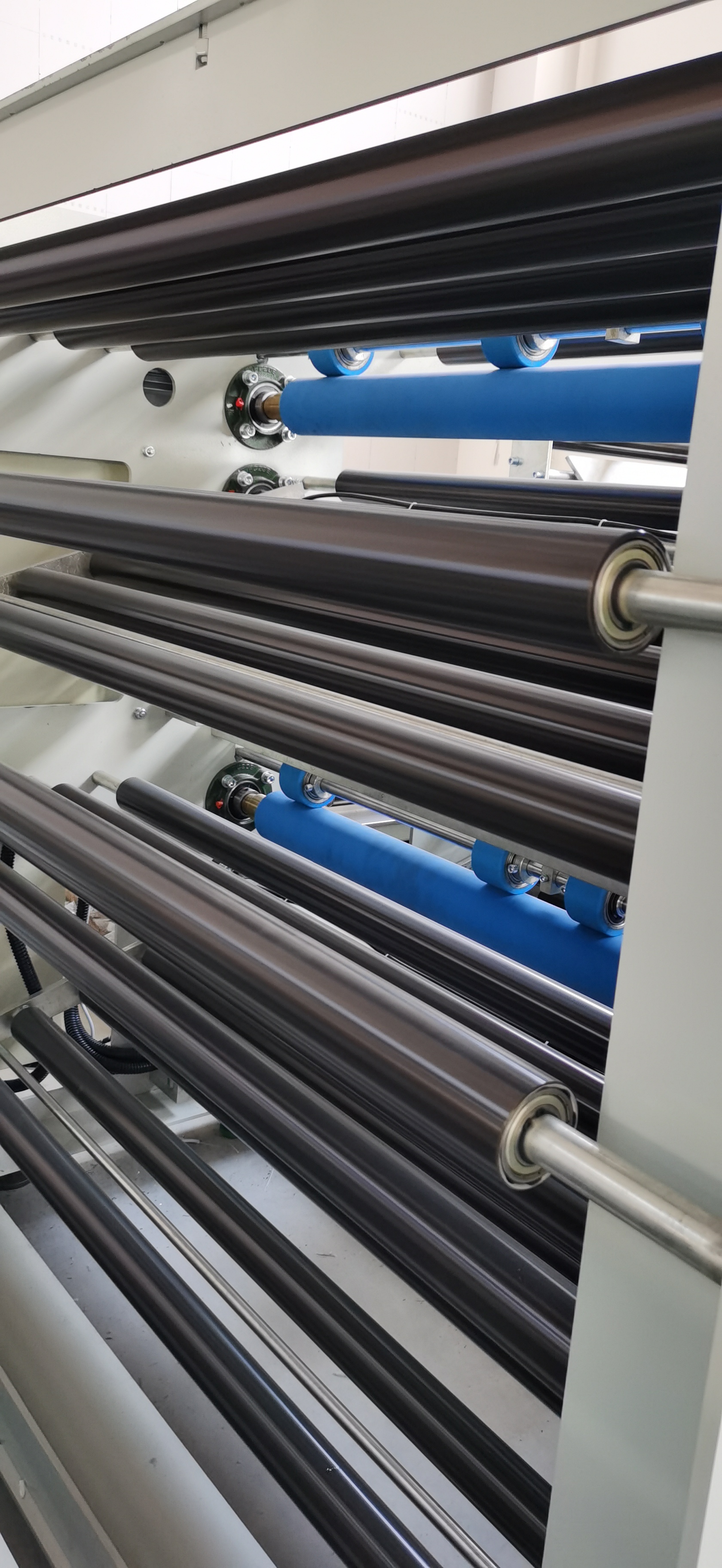

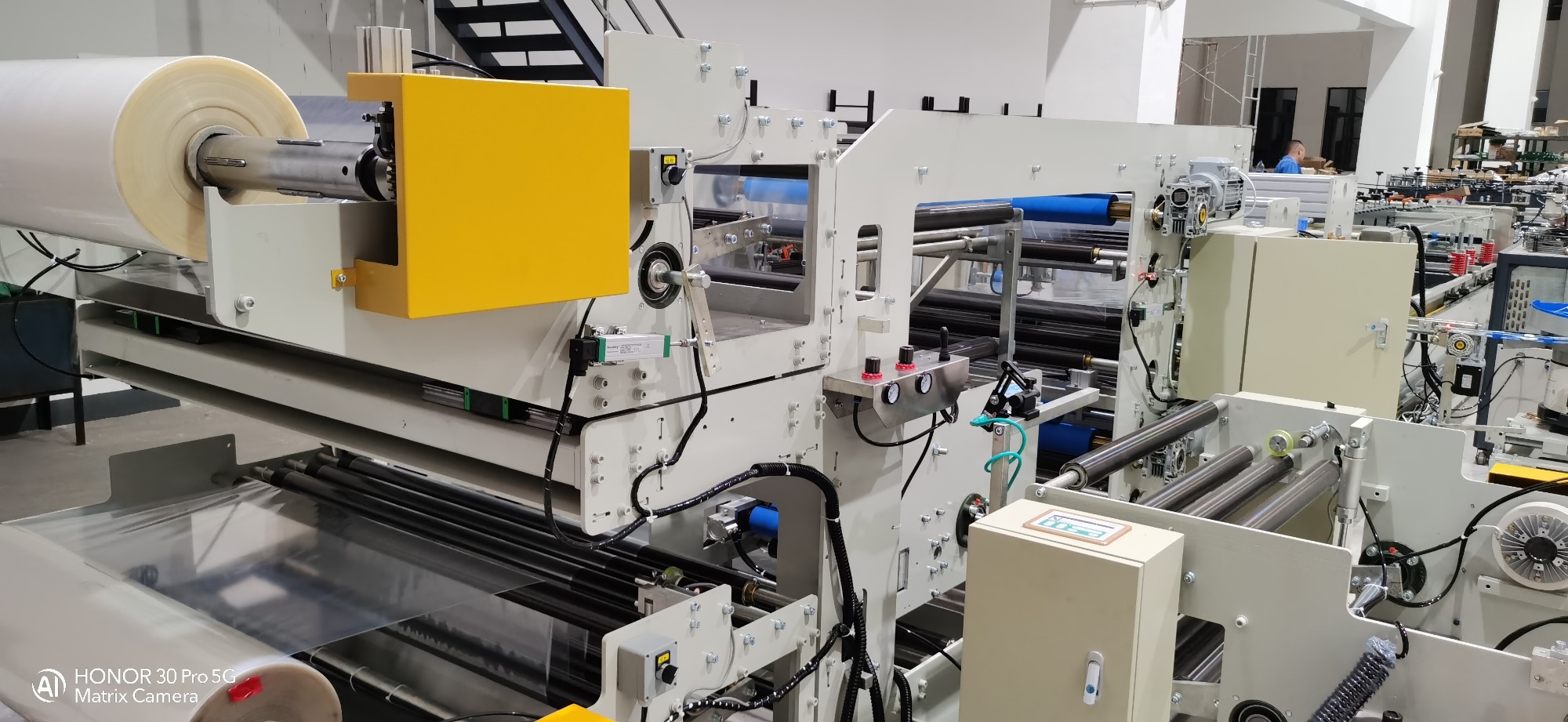

Unwinding Quantity |
3 sets: up, lower and bottom |
|
Unwinding size |
Ф800×1320mm |
|
Maximum Film Width |
1320mm |
|
Qty of temperature control |
19(PLC control) |
|
Temperature range |
0-400℃ |
|
Pull length |
800mm×1、2、3、4、5、6、7 |
|
Maximum Bag Width |
1300mm |
|
Precision |
≤0.5mm |
|
power |
48KW. 50HZ, 380V |
|
Weight |
11000kg |

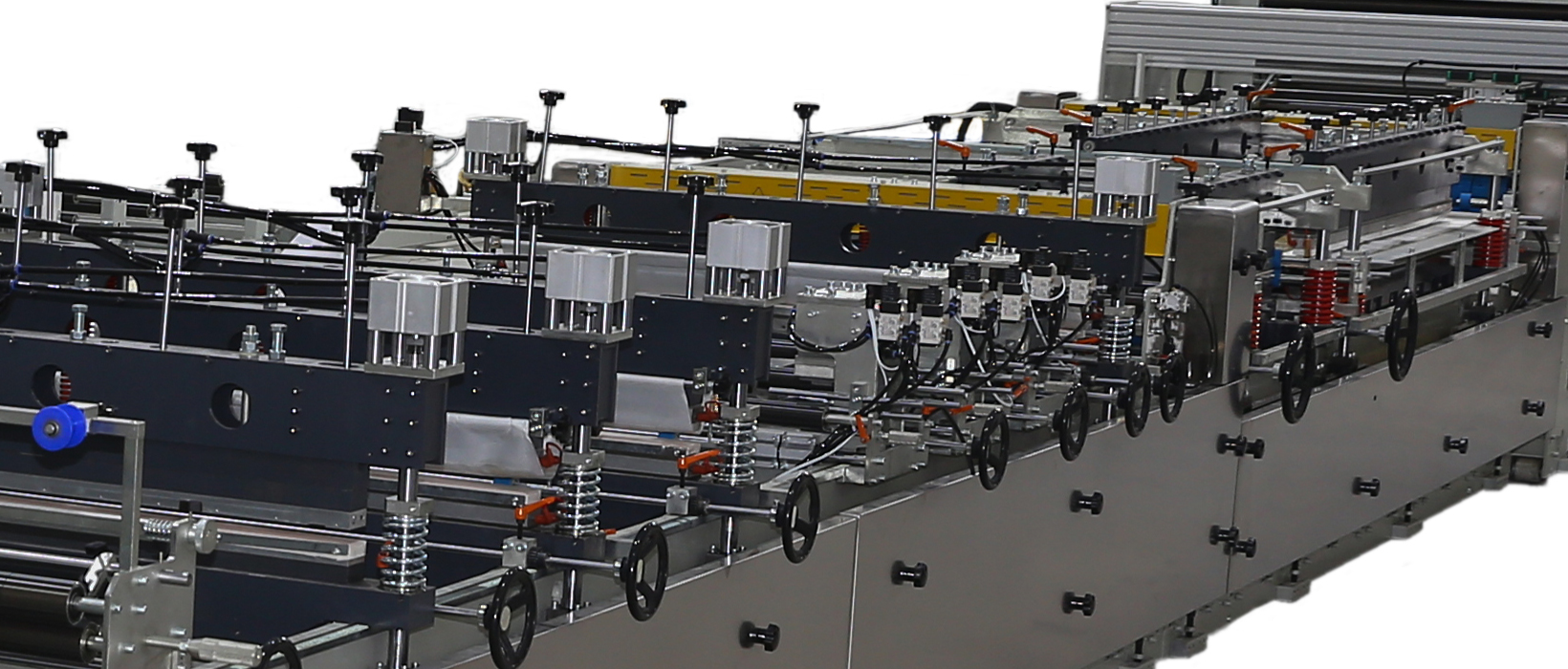

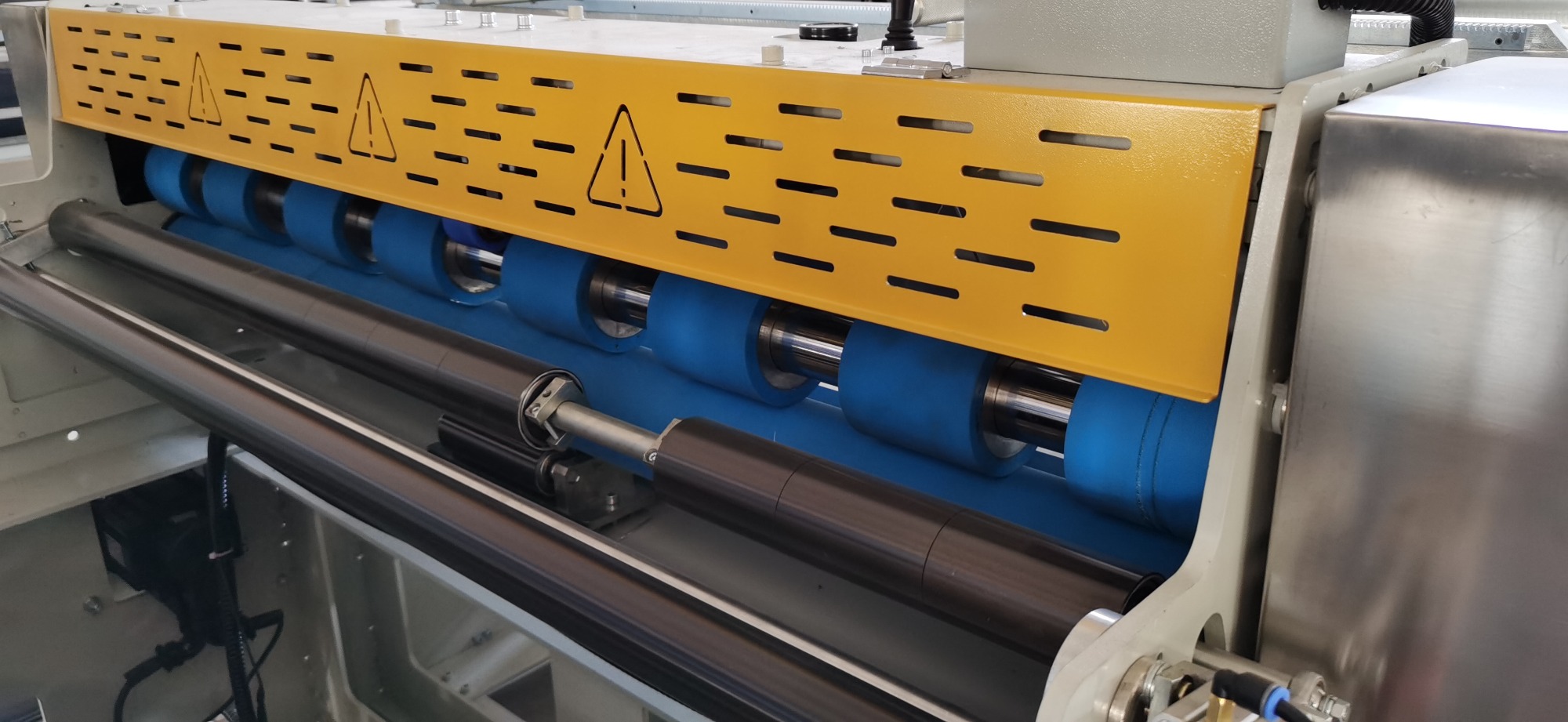

Heat seal mechanism
|
|
Quantity |
Length |
|
Longitudinal for zipper-heating(up and down heating) |
1 group |
1710mm |
|
Longitudinal heating(up and down heating) |
1 group |
1710mm |
|

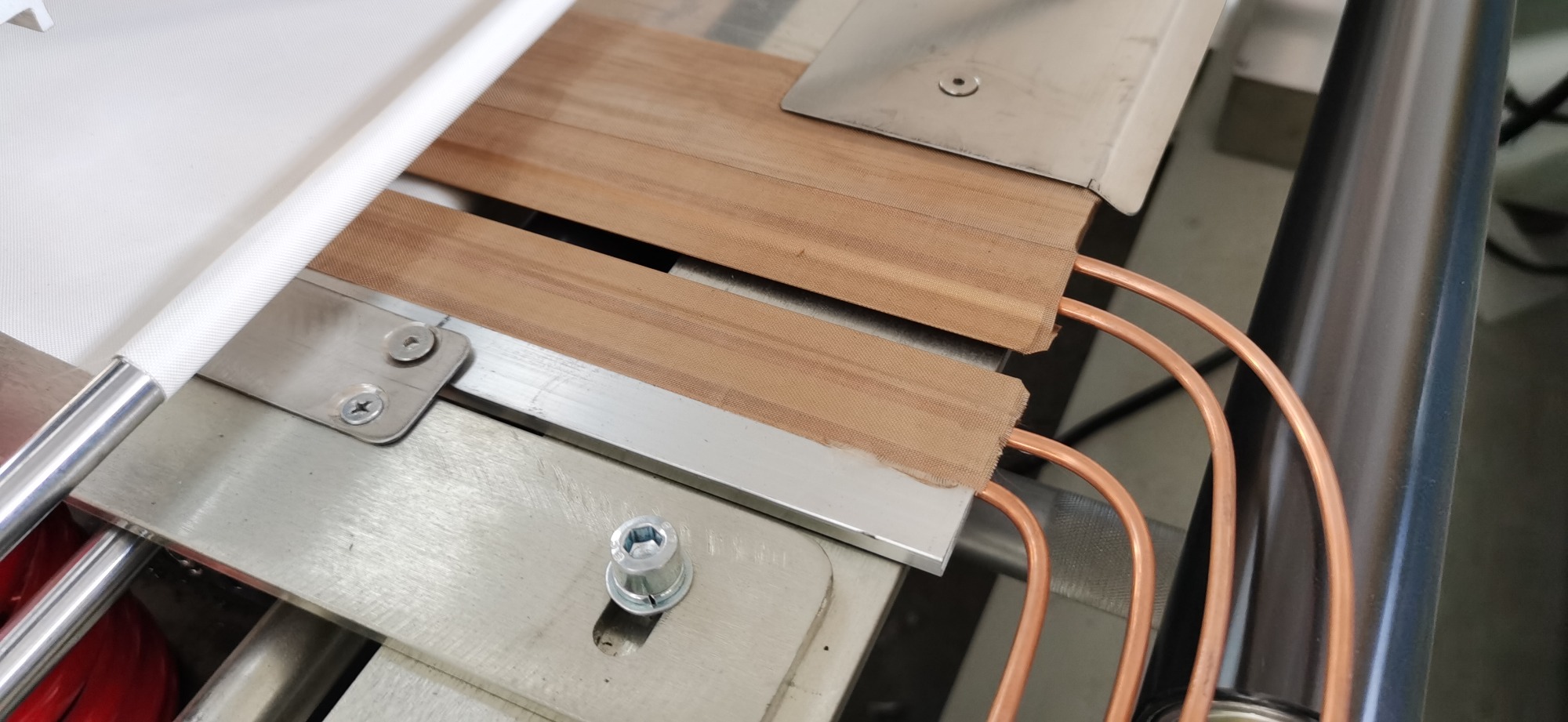

Longitudinal cooling (up and down) |
2 groups |
820mm |
|
Horizontally-heating(up and down heating) |
3 groups |
1340mm |
|
Horizontal-cooling (up and down) |
1 group |
1340mm |
|
Zipper head heat sealing (up and down) |
2 groups |
120mm |
|
Zipper head cooling (up and down) |
1 group |
120mm |
|
valve-heating |
1 group |
According to valve size |
